Dimmer DIN Rail Module

• Add Insteon Remote Control Directly to your Insteon Setup

• Snaps Onto a DIN Rail


• Sense Wiring Retains Local Control at the Switch


• Compatible with Latching, Single Momentary and Dual Momentary Switches


• Featuring Dual-Band Insteon Technology for the Fastest and Most Reliable Performance


Insteon DIN Rail Dimmer is a module that clips right onto a DIN rail to add a wide variety of customizable, remotely controllable dimmer options (brightness levels, ramp rates) to multiple lights. Also available in an on/off version.

A DIN rail is a method of mounting electrical devices; it doesn't carry any power, it's just a mounting solution. Multiple Insteon DIN Rail modules can mount to a single DIN rail making it easy to keep a complicated lighting setup organized.

Essential Info

When planning the electrical wiring for your home or business, avoid adding too many wall switches in a single location. Wall switches ganged together cause homeowner confusion and can quickly ruin the aesthetic of a room. Instead consider adding a single Insteon keypad to control all the lighting. It's easy when combined with Insteon DIN Rail Modules.

Use of DIN rails is common overseas and in US commercial/industrial buildings. Because of their ease of installation, DIN rails are becoming more popular in the US. DIN rail products provide integrators and builders a more custom and organized way to handle complicated wiring circuits.

Insteon DIN Rail Modules clip directly onto a 35mm DIN rail and wires to load, power and neutral. Link it to an Insteon keypad or any other Insteon device for full remote control over the module and it's connected load. Specifically, DIN Rail On/Off is compatible with the "Top hat rail EN 50022" (sometimes referred to as a Type O or Type Ω) The DIN Rail Modules will fit either variation of this style DIN rail (either 15 or 7.5 mm "high" off the mounting surface).

Optional Sense Wire Trigger

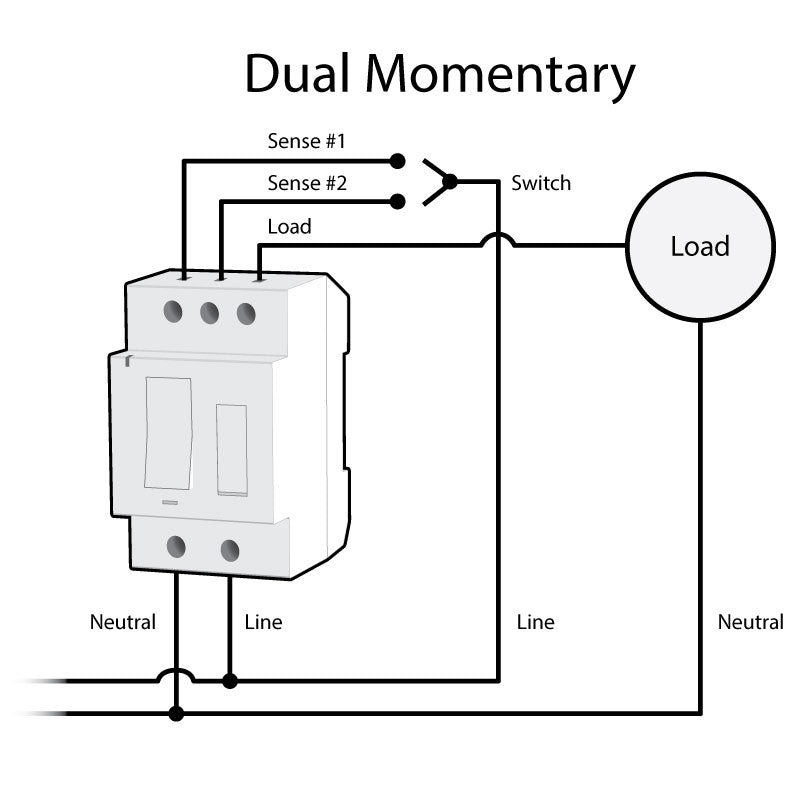

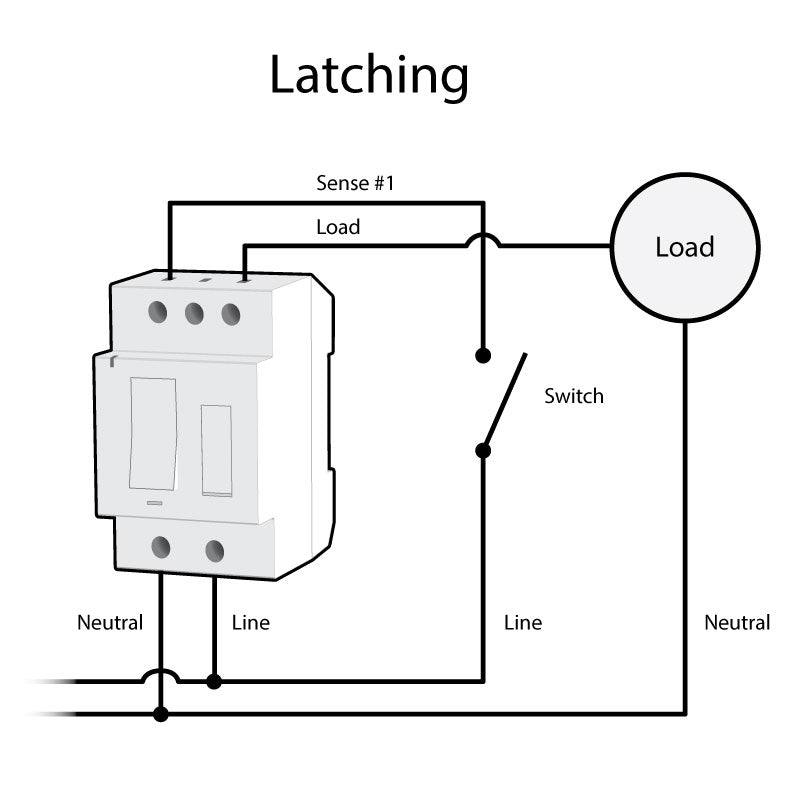

The DIN Rail Modules feature sense inputs for special applications where a local "dumb" switch might be necessary in addition to remote Insteon control. Sense inputs are compatible with latching, single momentary and dual momentary wall switches. Connect to any style wall switch to match any type of designer theme (antique, push-button, metal, etc.)

Local Control and Insteon Setup

The DIN Rail Modules have a small paddle that operates similarly to other Insteon wall switches. So, you can turn the connected load on or off by tapping the paddle. Furthermore, a setup button is provided for setting up other properties as well as for linking and un-linking. Finally a dual-color (green and red) LED displays the on (green) or off (red) status of the connected load.

For more information, including user guides, visit https://www.insteon.com/support-knowledgebase/get-started-2452-222
